5 Axis Milling Machine

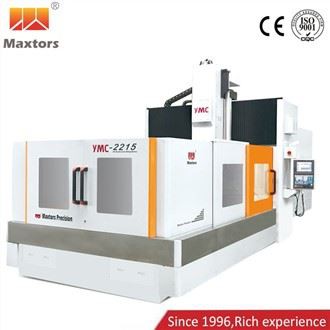

Double column type 5 axis milling machine

5 axis cnc milling machine with AC rotary milling head

Various sizes and configuraton to meet end users's demand.

X Axis: 1600~15000mm

Y Axis: 1200~4000mm

Z Axis: 500~2000mm

A Axis: ±100 degree

C aixs: 360 degree

5 axis with 4 axis simultaneous -fast delivery time

5 axis with 5 axis simultaneous-delivery time usually very longer



More details welcome you direct contact us to offer you the best delivery time according to the final configuration what you are interested in.

Five-axis linkage machining center, also called five-axis machining center, is a machining center with high technological content and high precision specially used for machining complex curved surfaces. Instruments, high-precision medical equipment and other industries have a pivotal influence. The five-axis linkage CNC machining center system is the only means to solve the processing of impellers, blades, marine propellers, heavy generator rotors, steam turbine rotors, large diesel engine crankshafts, etc.

Gantry machining center refers to a machining center in which the axis of the Z axis of Spindle is perpendicular to the worktable. The overall structure is a large machining center machine with a double column and a top beam forming a portal structure frame, and there is a beam in the middle of the double column. Especially suitable for machining large workpieces and workpieces with complex shapes.

Classification

There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam moving) There are also multiple types of gantry machining centers in the above composite form. The processing characteristics, capabilities, and product processing uses are not exactly the same.

5- Axis Machines:

1.1 What is 5-Axis Machining?

5-axis machining provides infinite possibilities as to the part sizes and shapes you can effectively process.The term “5-axis”refers to the number of direction in which the cutting tool can move. On a 5-axis machining center,the cutting tool moves across the X,Y and Z linear axes as well as rotates on the A and C axes to approach the workpiece from any direction,In other words,you can process five sides of a part in single setup.

1.2 Simultaneous 5-Axis Machining Versus 3+2 Machining

In simultaneous 5-axis machining,the machine tool’s three linear axes(X,Y and Z) and two rotational axes(A and C) all engage at the same time to perform complex processing on parts.With 3+2,the machine executes a 3-axis milling program with the cutting tool locked in a tilted position using its two rotational axes.The process,also known as 5-axes positional machining,relies on the fourth and fifth axes to orient the cutting tool in a fixed position rather than manipulate it continuously during the machining process.













Our Advantages:

1. FACTORY DIRECT SALE-Best price and good after sales.

2. More than 25 years' experience .

3. OEM and various design are available .

4. Professional teams: Professional production and sales team to service for you.

5. Quality guarantee. .
