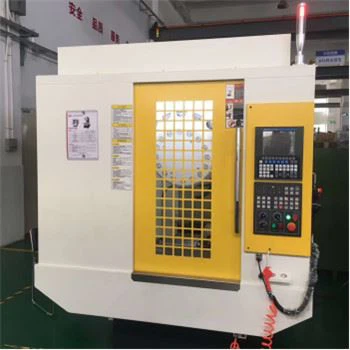

CNC Tapping Milling Machine

Description

The body, column, headstock, and other components of the CNC Tapping Milling Machine are optimized through finite element analysis to achieve the best dynamic performance and high rigidity. The 3-axis adopts linear guides and high-speed ball screws, and the rapid feed speed can reach 48m/min, which can provide high rigidity, dynamic accuracy, and high-speed cutting feed performance. The high-speed spindle with over 12,000 revolutions is used to provide an automatic tool-changing system with high-speed and high-precision performance. The structure is simple and stable, and the reliability is high.



Details

Different models :TC-540/TC-640/TC-750/TC-1000 Linear guide type with high-speed spindle and quick tool change system.

Hot model TC-640

The CNC Tapping Milling Machine can be used with JAPANESE FANUC, Mitsubishi, EURO Siemens, FOGOR, Heidenhain, TAIWAN LNC, SYNTEC cnc controller. The 4-axis indexing head or 4/5 tilting table can realize 4-axis or 5-axis functions. It uses high-strength cast iron. The X, Y, and Z-direction guides are all rectangular sliding guides pasted with plastic. The whole machine adopts imported bearings.



Product Features

1. Strong anti-seismic ability, high strength and good quality cast iron.

2. X/Y/Z axis precision linear guide.

3. Ball screw pre-extension structure reduces thermal deformation and improves precision and rigidity.

5. Adopt Japan NSK special screw angular contact ball bearing set.

6. Front type tool magazine for quick tool change.

7. Fully sealed protective cover.







Standard Configuration

● Vertical Type

● Precision BT30 12000rpm Spindle

● XYZ Axis Servo Motor

● Fully Enclosed Splash Guard

● Electrical Cabinet Heat Exchanger

● Data transfer interface

● Automatic lubrication system

● Tool box

● Leveling bolts and blocks

● Cutting air blast system



Optional Configuration

○ BT30 15000/20000rpm Spindle

○ Coolant Through Spindle (CTS)

○ Electrical Cabinet AC

○ The 4th axis rotary table

○ CE Mark

○ Machine Column Heighten

○ LNC/Syntec CNC Controller

○ FANUC/Siemens/Heidenhain CNC Controller

○ Others Options as requested















One of the main advantages of rigid tapping is that the depth can be precisely controlled in blind hole machining. In order to accurately and consistently process the workpiece, it is necessary to use a tap holder with sufficient compensation to achieve a higher tap life without causing any changes in depth control.



Our Advantages:

1. OEM is acceptable. Your design is welcome.

2. Professional teams: Professional production and sales team to service for you.

3.We have well-known cooperation partners, such as FANUC,Mitsubishi,Siemens,HIWIN,PMI and etc.



FAQ:

Q: How the product pricing and how to consult prices?

A: We pricing the products according to the customers' choice on the machine parts,configuration and cnc controller and so on what you asked. And you can send the inquiry by skype or e-mail.

Q: What information should I let you know if I want to get a quotation of the CNC Tapping Milling Machine?

A: -Size of the machines

Configuration of the machine and options

Quantity

FOB price is our usual price term.

If it is possible, please also provide with pictures ,drawings and etc.
