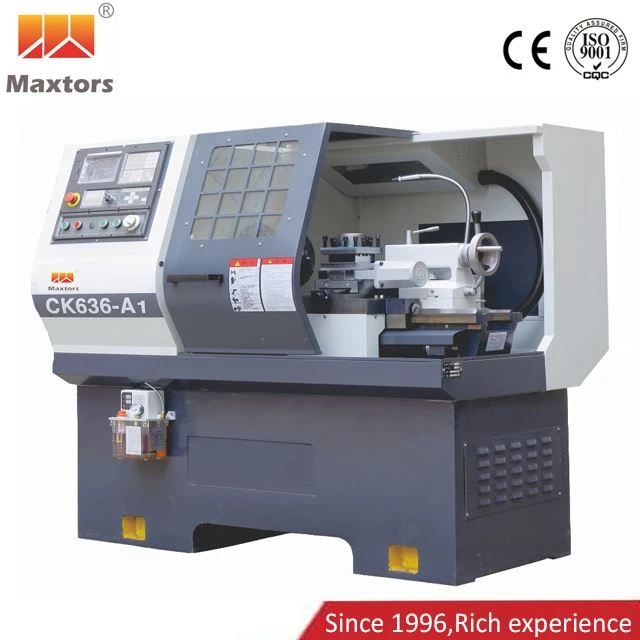

Flat Bed CNC Turning
CK636/CK6136/CK636/CK6140/CK6150/CK6160/CK6163/CK6180/CK6183
Box way /Hard way type Horizontal CNC Lathe Machine
Introduction
The CNC machine tool is an automatic processing machine suitable for modern industrial production. The keyword of its birth is automation. It is a kind of CNC equipment with a large amount of domestic use and wide coverage. Flat Bed CNC Turning is a simple CNC retrofit with two rail planes parallel to the ground plane. Good rigidity and high manufacturing accuracy enable it to process various parts that require high shape accuracy. In addition, it can produce parts that are relatively close in shape to the geometry required on the drawing, including arcs and other curved profiles. Good programming can provide good positioning accuracy and repeatability.
Features
1. The bed of the Flat Bed CNC Turning adopts the super audio frequency quenching treatment of the guide rail, so the surface hardness is higher and it is more wear-resistant.
2. The feeding system adopts the servo motor to directly drive the ball screw, so the transmission precision is high.
3. Semi-enclosed or fully enclosed designs can provide good protection.
4. The layout of the components is reasonable, the control system is also very stable, and the operation is relatively simple.
Details
|
Item |
Unit |
CK6(1)36-A1/A2 |
CK6140-A |
CK6140-B |
CK6140-C |
CK6150 |
CK6163 |
CK6183 |
|
|
Working |
Max swing dia.over bed |
mm |
360 |
400 |
400 |
400 |
500 |
630 |
830 |
|
Max.Swing dia.on sliding plate |
mm |
160 |
210 |
210 |
210 |
270 |
330 |
500 |
|
|
Max.Workpiece Length |
mm |
400 |
750 |
750 |
750 |
1000/1500 |
1000/1500 |
1000/1500 |
|
|
Spindle |
Spindle speed range |
rpm |
150~3000 |
150~2500 |
150~2000 |
150~1500 |
150~2000 |
9~1000 |
7~800 |
|
Spindle speed steps |
|
Stepless |
Stepless |
Stepless |
Stepless |
Stepless |
Stepless in 4 shifts |
||
|
Spindle Bore |
mm |
Φ48/60 |
Φ58 |
Φ82 |
Φ115 |
Φ82 |
Φ105 |
Φ105 |
|
|
Spindle Taper Hole |
mm |
Φ56/60 |
6# |
90 |
115 |
90 |
Metric 120(1:20) |
Metric 120(1:20) |
|
|
Maual Chuck |
|
Φ160/200 |
Φ200 |
Φ250 |
Φ320 |
Φ250 |
Φ325 |
Φ325 |
|
|
Spindle Motor |
KW |
3/4 |
5.5 |
7.5 |
7.5 |
7.5 |
11 |
11 |
|
|
Feed |
X Axis Travel(With Tool Post) |
mm |
220 |
230 |
230 |
230 |
260 |
490 |
490 |
|
X Axis Travel(With Linear Tool) |
mm |
300 |
- |
- |
- |
- |
- |
- |
|
|
Z Axis Travel |
mm |
400 |
750 |
750 |
750 |
1000/1500 |
1000/1500 |
1000/1500 |
|
|
X/Z Rapid federate |
m/min |
8/10 |
8/10 |
8/10 |
8/10 |
8/10 |
6/10 |
6/10 |
|
|
X/Z Min.Input unit |
mm |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
0.001 |
|
|
Accuracy |
X/Z Repeatability accuracy |
|
0.005/0.008 |
0.005/0.008 |
0.005/0.008 |
0.005/0.008 |
0.007/0.01 |
0.007/0.01 |
0.007/0.01 |
|
Tool |
4 Tool Station |
|
Std. |
||||||
|
6 Tool Station |
|
Opt. |
|||||||
|
Linear type |
|
Opt. |
|||||||
|
Tailstock |
Tailstock Center(MT) |
|
4# |
4# |
4# |
4# |
5# |
6# |
6# |
|
Surface Roughness |
Non-ferrous metal |
μm |
0.5 |
0.5 |
0.5 |
0.8 |
0.5 |
0.8 |
0.8 |
|
Steel |
μm |
0.8 |
0.8 |
0.8 |
1.6 |
0.8 |
1.6 |
1.6 |
|
|
Size |
Machine Size(L×W×H) |
mm |
1520×1070×1460 |
2050×1180×1560 |
2050×1180×1560 |
2050×1180×1560 |
2800/3300×1360×1650 |
3298/3858×1660×1690 |
|
|
Machine Weight |
kg |
1100/1200 |
1840 |
1920 |
2100 |
2800/3100 |
3800/4300 |
4000/4500 |
|
|
CNC Controller |
KND K100T-Ci |
|
Std. |
||||||
|
GSK980TB3 |
|
Opt. |
|||||||
|
SYNTEC |
|
Opt. |
|||||||
|
FANUC/Siemens/Mitsubishi |
|
Opt. |
|||||||
