Torno Machine CNC

Description

Torno Machine CNC is a very versatile machine tool mainly used for the machining of various complex flat, curved, and shell parts, such as the milling of cams, molds, blades, propellers, and casings. At the same time, it can also perform drilling, expanding, reaming, tapping, and other processing for parts such as cavities and molds. With the program control system, it can control the action of the machine tool and process the parts through the program specified by the control code or other symbolic instructions. Compared with ordinary machine tools, our products have high machining accuracy and stable quality. The linkage of multiple coordinates can make the processing of complex shapes easier. When you need to change the machined part or change the operation, you only need to change the program, which can save a lot of preparation time. In addition, you can equip Torno Machine CNC with some auxiliary components such as cooling, chip removal, and lubrication equipment to ensure the operation of CNC machine tools.

Details

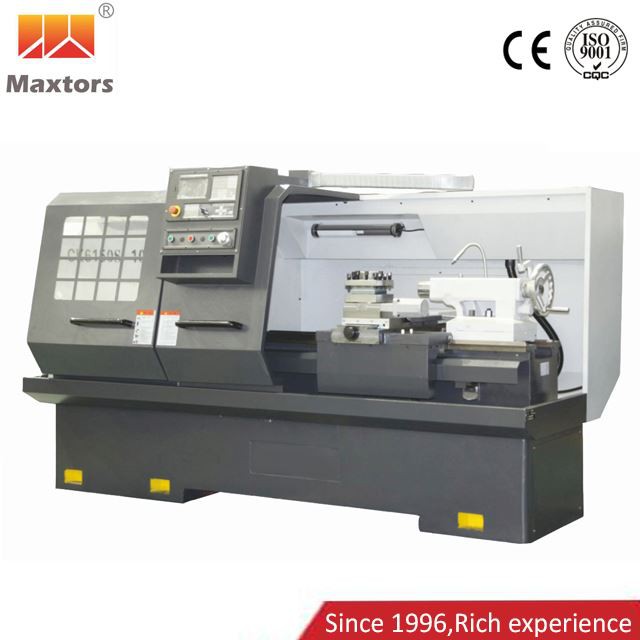

Product Name: Torno machine cnc turning lathe flat bed type

Model: CK6150

Standard Configuration:

GSK-928/KND 100T system, 7.5KW Spindle motor , manual three-jaw chuck Φ250, manual tailstock, four-station electric tool holder, automatic lubricating oil pump, electric cooling system, Lighting system,semi-enclosed protective cover, full set of technical information, standard accessories and tools.

Standard Accessories

Φ250mm manual three-jaw chuck, manual and certificate, double-head wrench set, hex wrench set, screw driver, adjusting horn.

Optional Configuration

1.CNC system: GSK, Beijing KND, Taiwan Syntec, Japan FANUC, Japan Mitsubishi, Germany Siemens, etc.

2.11KW Spindle motor

3.Larger size model 6163

4.Six-stations electric tool holder /tool row

5.manual three-jaw chuck Φ320mm

6.hydraulic chuck

7.hydraulic support

8.Φ400mm four-jaw Chuck

9.steady rest, and follow rest

1. How do you do quality control?

MAXTORS CNC develops and implements strict quality management internal control standards to achieve close monitoring of the entire machine tool design and manufacturing process.
